Intrim Shadowline® SK800FR Fire Rated Skirting System

Intrim SK800FR Fire Rated Shadowline® is Intrim’s CSIRO tested and AS1530.4-2014 fire standard approved Skirting Board. It is designed to be installed prior to wall plastering to provide a flush finish. This style of moulding is recommended for use in a Modern Contemporary / Art Deco style interior.

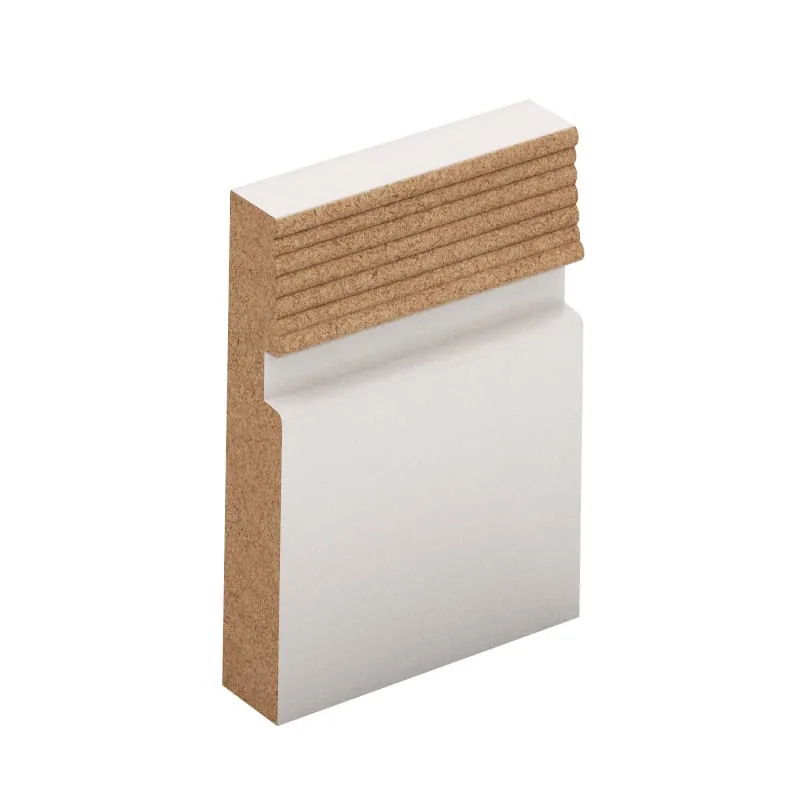

Intrim SK800FR Shadowline® is specially crafted in a fire resistant MDF and comes pre-primed to save you time on your project. SK800FR is 18mm thick, has a Shadowline groove that is 10mm high x 6mm deep, and available in 65mm, 90mm, 110mm, 160mm, 205mm and 260mm visible heights.

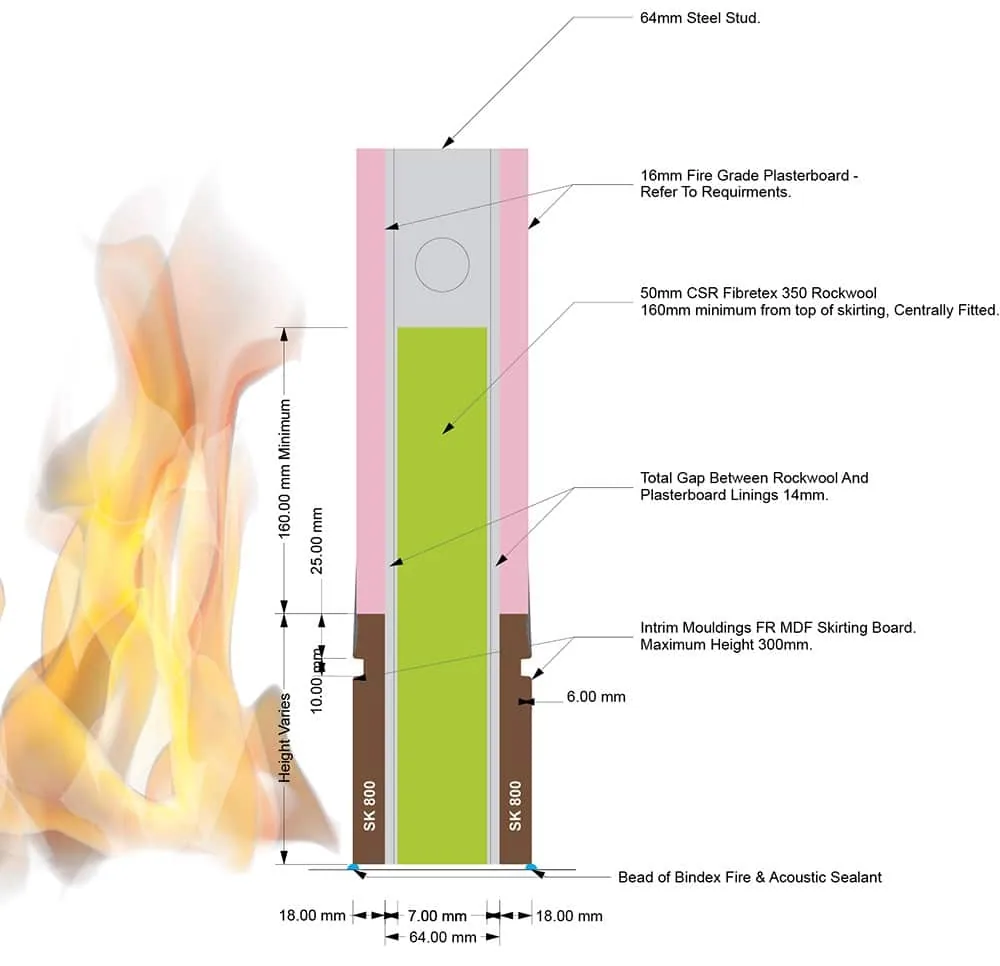

Unlike traditional skirting boards, the height dimensions on Shadowline are now shown as the visible height to the top of the Shadowline Groove (A). This allows you to measure up from the floor to select your profile sizes. The actual material is much higher than the visible size, as the top section of the skirting board sits behind the plasterboard. Refer to the diagram and Shadowline table of dimensions to help you select the size that best suits your requirements.

Find out more about the testing and wall constructions for compliance here and our Installation Instructions here.

Australian Patent No AU2014100509.
